RAP Clientless SSL Web Portal

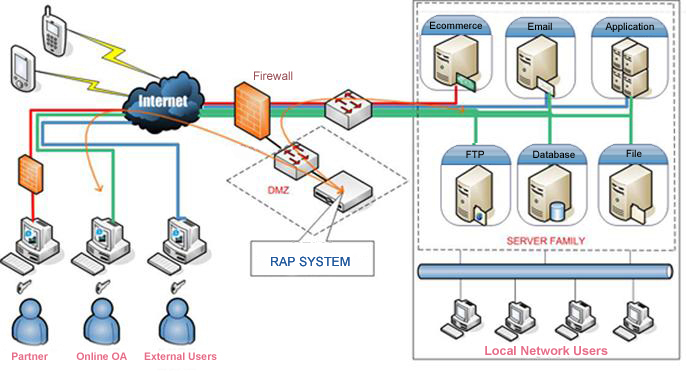

RAP Series products are hardware based clientless Web Portal gateway appliance. The appliance is installed in the LAN behind the firewall. It is a point in the intranet. The firewall maps the https port to RAP. When registered user accesses the https port of the public IP of firewall, the RAP will take over to authenticate, authorize this user. After passing the security checking, the user can access the any applications and datas in the intranet transparently, securely and anywhere. RAP provides the security protection of data from the man in the middle. RAP can translate the protocols of applications in the LAN to the browser or local PC through the security data chennel built by RAP. RAP makes the dream of real OA remotly true.

RAP S (Standard) Series:

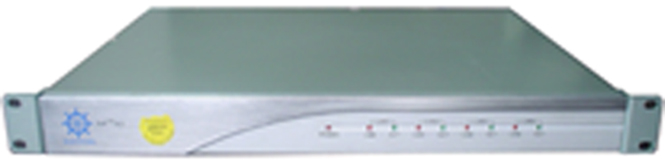

    1U box; P3-1G CPU; 512M SDRAM; two 100M Ethernet Interfaces. RAP 300 Series can supports up to over 50 users concurrently.

RAP P (Professional) Series:

    1U box ; P4-2.8G CPU; 1G DDR RAM; two 100M Ethernet Interfaces, or one Giga & one 100M Ethernet Interfaces. RAP P Series can supports up to over 250 users concurrently.

RAP E (Enterprise) Series:

    1U or 2U box ; P4-3.xG CPU; 1~2G DDR RAM; two 100M Ethernet Interfaces, or one Giga & one 100M Ethernet Interfaces. RAP E Series can supports up to over 300 users concurrently.
